Potentiometrisches Füllstandsmessgerät

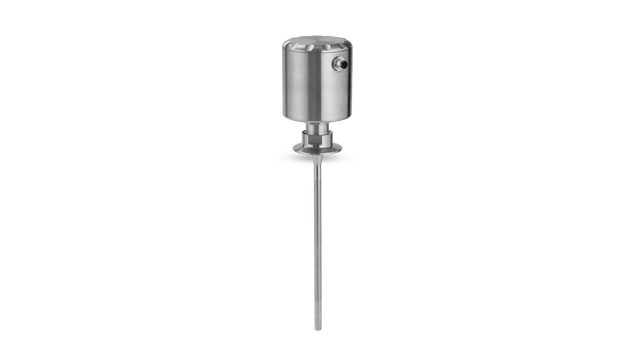

The Alfa Laval Potentiometric Level Transmitter is designed specifically for small tanks containing highly viscous and pasty products, such as ketchup, honey and toothpaste.

  • Dokumente
  • Passende Branchen
  • Passender Service

Compact, hygienic design

The Alfa Laval Potentiometric Level Transmitter is designed specifically for small tanks containing highly viscous and pasty products, such as ketchup, honey and toothpaste.

All wetted parts are made of AISI 316L stainless steel and PEEK, and designed to withstand process temperatures between -20 and +140°C. Because these 3-A certifed transmitters can withstand high temperatures, they are well suited for use in Cleaning-in-Place (CIP) and Sterilization-in-Place (SIP) processes.

Ease of installation

The Alfa Laval Potentiometric Level Transmitters are easily mounted in top, bottom or angled position. Regardless of position, advanced integrated electronics enable automatic recognition of the transmitter output signal thus ensuring reading accuracy.

For more information, please refer to Documentation.

  • Compact, hygienic design
  • Easy of installation
  • Designed specifically for small tanks

Die neueste Onlineversion von 'close at hand'

Zum Alfa Laval Produktkatalog

So funktioniert's

Operating principle

The Potentiometric Level Transmitter can be used with all media that have a conductivity of at least 50 μS/cm. The low resistive measuring probe on the transmitter conducts a high frequency current through the medium in the tank.

The voltage applied between the probe and the tank wall is then measured. The output voltage is proportional to the tank filling level. The measurement is unaffected by temperature and adhesive media.


Laden Sie die Produktmodelle als neutrale oder native CAD-Dateien herunter. Es ist außerdem möglich, 3D-PDF-Dateien herunterzuladen.

 Zum CAD-Portal

Schauen Sie sich die Animationen der Produkte von Alfa Laval an und lernen Sie, wie diese funktionieren.

Animationen ansehen

Damit Sie stets auf dem neuesten Stand sind – bei allen Themen wie Nachhaltigkeit und neue Möglichkeiten in Ihrer Branche sowie für Ihre Prozesse.

Mehr erfahren

Part of a broad instrumentation range

Alfa Laval offers a comprehensive range of instrumentation intended for hygienic applications in the dairy, foodbeverage,home carepersonal care, biotechnology and pharmaceuticals.

For a broader instrumentation range, explorer the differentproduct categories: analytical instruments, cleaning validation instruments, flow instruments, level instruments, pressure instruments, temperature instruments and weighning instruments.
