Finned tube air heat exchangers
With an Alfa Laval finned tube air heat exchanger you get a robust cooler that will deliver high performance for many years to come. Our product range covers most applications in oil & gas, data centers, hydrogen, RNG and CCUS. We supply both standardized and fully customized, engineered-to-order solutions. Thanks to their flexible designs, we can configure our heat exchangers to match your specific operating conditions, ensuring reliable operation, low operating costs and high performance.
Benefits
- Customized to your requirements
- Very low energy consumption
- Robust heat exchangers, built for tough duties
- High performance
- Low maintenance requirements
Discover our range of tailored air cooling solutions
Dokumente
Sprechen Sie mit einem Experten
Wir besprechen gerne mit Ihnen die Vorteile, die Ihnen ein Alfa Laval Rippenrohr-Luftwärmetauscher bieten kann und zeigen Ihnen, wie wir Ihnen helfen können, Ihren Betrieb zu verbessern.
Service und Ersatzteile
Sie suchen Ersatzteile oder einen Außendienst? Wir können Ihnen helfen! Sprechen Sie mit einem unserer Außendiensttechniker.
OEM spares available 24/7 in our ACE Webshop
Genuine spare parts for your ACE equipment are critical to uptime and profitability. At the Alfa Laval web shop, OEM quality spares are just a few clicks away. It’s easy to find the right part. Simply search using the serial number of your Alfa Laval ACE or, for any other brand of air-cooled heat exchanger, using the part specifications.
Modelle
Alfa Laval ACE Modell A
- Vertikale, schräge(r) Abschnitt(e) und Ventilator mit vertikalem Luftausstoß
- Schrägabschnitte bieten einen optimierten Schwerpunkt für sicheres Verladen und Transportieren
- Erhältlich mit leichter Aluminium-Lüfterschutzabdeckung für erhöhte Wartungssicherheit
Alfa Laval ACE Modell C
- Vertikalschnitt(e) und Ventilator mit horizontalem Luftausstoß
- Kostengünstige und kompakte Alternative zu vertikalen Ausblasmodellen
- Leichter Zugang zum Kühlerteil bei der Wartung
Alfa Laval ACE Modell E
- Horizontalschnitt(e) und Ventilator(en) mit vertikalem Luftausstoß
- Erhältlich in Konfigurationen mit einem bis vier Lüftern
- Erhältlich mit einer oder mehreren Aluminium-Lüfterschutzhauben für erhöhte Wartungssicherheit
- VFD-fähiger elektrischer Antrieb für präzise Luftregelung und Leistungsaufnahme
Alfa Laval ACE Modell J
- Vertikalschnitt(e) und Ventilator mit vertikalem Luftausstoß
- Leichter Zugang zum Kühlerteil bei der Wartung
- Richtungsplenum ermöglicht einen effizienten Luftstromübergang von der Horizontalen in die Vertikale
Alfa Laval ACE Modell T
- Horizontalschnitt(e) und Vertikalventilator(en) mit vertikalem Luftaustritt
- Erhältlich in Konfigurationen mit einem bis fünf Lüftern
- Erhältlich mit einer oder mehreren Aluminium-Lüfterschutzhauben für erhöhte Wartungssicherheit
- Relativ geringe Breite für einfachen Transport
Alfa Laval ACE Modell V
- Schrägschnitte mit horizontalen Ventilatoren und vertikalem Luftausstoß
- Modulare Saugzuggebläsezellen ermöglichen Abschnittslängen bis zu 18 m (60 ft)
- Die spezielle Konstruktion reduziert die Transport- und Grundstücksflächenkosten im Vergleich zu Horizontalschnittkonstruktionen
- Standard-VFD-Ventilatoren, die vorverdrahtet und auf dem Gerät installiert sind, reduzieren die Betriebskosten
Alfa Laval Olmi Modell G
- Modularer Aufbau, der eine schnelle Bestellung und Lieferung gewährleistet
- Flexible Konfigurationen
- Entwickelt für den einfachen Transport auf einem normalen LKW oder in einem 40-Fuß-Container
- Schnell und einfach zu installieren
Alfa Laval Olmi API 661 Luftkühler
- Maßgeschneiderte Einheiten für härteste Anwendungen
- Bewältigung von Temperaturen bis zu 400°C (700°F) und Drücken bis zu 700 bar (10.000 psi)
- Erhältlich in vielen Materialien einschließlich Titan
- Komplett vormontierte, modularisierte Einheiten
Case story: Upgrade brought lower operating costs and reduced noise levels
Substantial savings in power consumption as well as reduced noise and vibration levels were the results when the fans, motors and transmissions of a 60-cell system of air-cooled heat exchangers in a European fertilizer plant were upgraded. Alfa Laval Olmi´s service organization handled the entire upgrade from initial planning to installation.
Air cooled heat exchanger educational courses
Check out our online and expanding course curriculum designed to educate the user on all key aspects of designing, buying and owning an air cooled heat exchanger. Quizzes are available to test your knowledge. Pass the quiz and you will receive a course certificate!
Nachhaltige Effizienz
Steigern Sie Zuverlässigkeit und Rentabilität mit den luftgekühlten Wärmetauschern von Alfa Laval. In unserer Broschüre erfahren Sie, wie wir Ihnen bei der Verbesserung der Nachhaltigkeit Ihres Werks helfen können.
So funktioniert es.

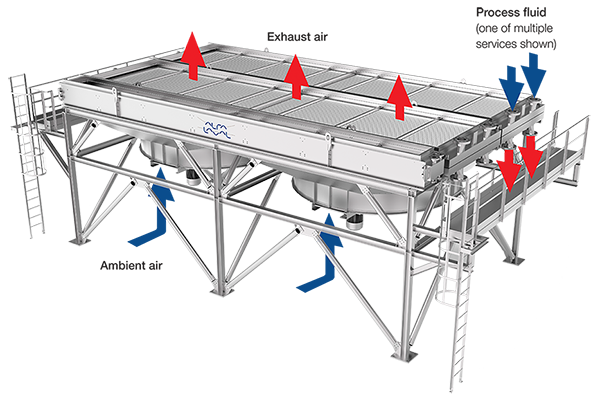

Working principle ACE Model E, Olmi API 661 and Olmi Model G
Working principle ACE Model A
The hot medium (e.g. hot water or lube oil) flows through the heat exchanger within the large number of externally finned tubes. One or more fans force air across the tubes and the heat from the hot medium is transferred to the air. To maximize heat transfer, the tubes are equipped with fins that increase the area in contact with the air.
Alfa Laval offers a great variety of designs in terms of:
- Number of fans
- Orientation of the fans (horizontal or vertical)
- Orientation of the tube sections (horizontal, vertical or sloped)
- Induced or forced draft
- Configurable plot sizes
Forced draft design
In heat exchangers with a forced draft configuration the air passes the fan before it passes the finned tubes and the air is pushed through the tube bundles. The advantages with this include:
- The fan and belt is not exposed to the hot exhaust air, which increases component lifetimes.
- No temperature limit on the exiting air.
- When the tube sections are horizontal, the fan is placed under the tubes, making access during service easier and costs for structure lower.
- Energy consumption is often lower as compared to induced draft units.
Induced draft design
In a heat exchanger operating with induced draft the fan is placed after the tube sections, meaning air is pulled through the tube bundles. The advantages with this design are:
- A more even distribution of the air flow through the tube bundles.
- The risk of recirculating hot exhaust air is much lower thanks to a higher exit air velocity than in a forced-draft heat exchanger.
The combinations of forced/induced draft and the orientation of the fans and tube sections all have their individual advantages and ideal uses. Please contact your Alfa Laval representative for a discussion about the optimum solution for your specific conditions and application.
ACE - Working principle
Olmi - Working principle
