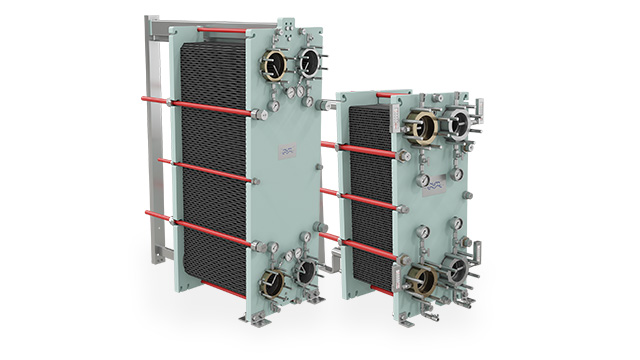

Marine gasketed plate heat exchangers
Alfa Laval has been developing heat transfer technology for more than 80 years and has been active in the marine industry for over a century. Based on that vast wealth of experience, our engineers have designed gasketed plate heat exchangers that set entirely new standards – not only for reliability, but also for thermal performance and ease of service.
The marine industry’s most modern line of plate heat exchangers
- Superior reliability and energy efficiency (OmegaPort™ ) (FlexFlow™ )
- Small size and footprint (CompactFrame™ design)
- Minimal fouling (CurveFlow™ plate distribution area)
- Easy installation and service (five-point alignment system)
- Optimized global supply chain and production for smallest environmental footprint
Suitable for any vessel, Alfa Laval gasketed plate heat exchangers excel in applications from general heating and cooling to heat recovery, condensation and evaporation. Whether used as central coolers in the engine room or for glycol heating onboard Floating Supply and Regasification Units (FSRU) their innovative features, take reliability to an all-new level and save crews time and effort during maintenance. Above all, their design minimizes fouling and maximizes heat transfer capabilities, which ensures the highest possible energy efficiency.
Learn more about the CompactFrame™, CurveFlow™,
Five-point alignment and other features that make the difference.
Schlüsselprodukte

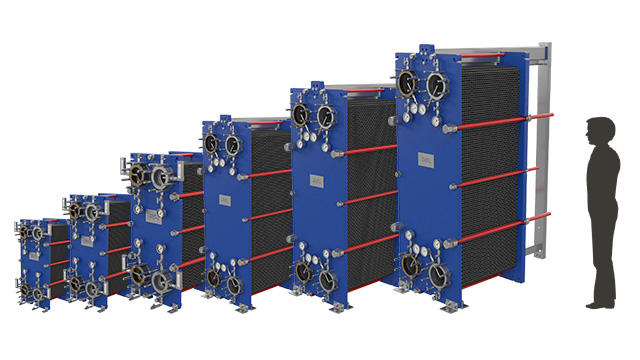

Gasketed plate heat exchangers for the engine room (central coolers)
Compact, reliable and energy-efficient, Alfa Laval gasketed plate heat exchangers are also safe and simple for crews to maintain. Our flexible marine line provides the right match for your needs today – with the possibility to adjust capacities later.
| T6 DN 60 |
T10 DN 100 |
T15 DN 150 |
T21 DN 200 |
T25 DN 250 |
T35 DN 350 |
|
|---|---|---|---|---|---|---|
| H (mm) | 890 | 1054 | 1833/1781 | 2082 | 2761 | 2875 |
| W (mm) | 320 | 470 | 610/650 | 755 | 913 | 1174 |
|
Temperature (oC) |
0 to 150 |
0 to 150 |
0 to 180 |
0 to 100 |
0 to 100 |
0 to 100 |
|
Pressure (bar) |
16 |
16 |
16 |
10 |
10 |
8 |
| Max flow rate (m3/h) | 60 | 160 | 370 | 650 | 1000 | 1970 |
| Capacity (kW) – water duty with LMTD 6 | 800 | 3 000 | 9 000 | 18 000 | 28 000 | 35 000 |
XL marine gasketed plate heat exchangers for glycol heating onboard Floating Supply and Regasification Units (FSRU)
|
|
|
|
|
|
TS45 |
T45 |
T50 |
|
|
H (mm)* |
2745 |
3540 |
4010 |
|
W (mm)* |
1430 |
1420 |
1550 |
|
Temperature (oC) |
- 50 to 150 |
-50 to 150 |
- 50 to 150 |
|
Pressure (bar) |
15 |
15 |
16 |
|
Max flow rate (m3/h) |
2 000 |
3 200 |
4 400 |
|
Capacity (kW) – water duty with LMTD 6 |
45 000 |
45 000 |
55 000 |
*Frame plate
Funktionsprinzip
Der Wärmeübertragungsbereich eines geschraubten Plattenwärmetauschers besteht aus einer Reihe von Wellplatten, die zwischen einem Rahmen und Druckplatten montiert sind, um den Druck aufrechtzuerhalten. Dichtungen bilden den hermetischen Abschluss zwischen den Platten. Flüssigkeiten strömen normalerweise im Gegenstrom durch den Wärmetauscher. Dies ergibt die effizienteste thermische Leistung und ermöglicht eine sehr enge Temperaturannäherung, d. h. eine geringe Temperaturdifferenz zwischen dem austretenden Prozessmedium und dem eintretenden Betriebsmedium.
Features that make the difference
The Industrial line is equipped with features that turn this high-performance family into efficient and reliable workhorses that are easy to service and maintain over the whole product lifecycle.
For efficiency
By improving the efficiency of your heat exchanger, you can maximize production and minimize energy consumption to reduce your power bill and improve your environmental footprint.
See product animations below or get more information and listen to our technical experts.
CurveFlow™
Verteilungsbereich
Verbessert den Medienfluss und minimiert das Ablagerungsrisiko.
OmegaPort™
unrunde Bohrungen
Verbessert den Produktfluss und die thermische Effizienz.
FlexFlow™
plate design
Improves thermal efficiency and optimizes pressure drop utilization.
For reliability
We are always looking to increase the reliability of every aspect of our gasketed plate heat exchangers.
We focus on durable designs based on robust materials and safe manufacturing processes.
See product animations below or get more information and listen to our technical experts.
PowerArc™
Plattenprofilteiler
Verbessert die Plattensteifigkeit für eine längere Lebensdauer.
Fünf-Punkt-Ausrichtung
Gewährleistet zuverlässige Plattenpositionierung und Servicefreundlichkeit für große Einheiten.
SteerLock™
Plattenausrichtung
Gewährleistet eine zuverlässige Plattenpositionierung und einfache Wartung.
For serviceability
The simple opening and closing of the plate-and-frame design with gaskets enables hassle-free inspection and service. It also enables you to easily adapt the unit to new process conditions.
See product animations below or get more information and listen to our technical experts.
ClipGrip™
Dichtungsbefestigung
Gewährleistet eine perfekte Abdichtung und problemlose Wartung.
T-Trägerwalze
Ermöglicht eine niedrigere Einheit, die leicht zu warten ist.
Lagerboxen
Gewährleistet das leichte Öffnen der Einheit für eine reibungslosere und effizientere Wartung.
Kompakter Rahmen
Erleichtert die Wartung und minimiert den Servicebereichsbedarf.
Case stories
Alfa Laval technology powers sustainable operations on Maersk’s pioneering methanol-fuelled container vessel
In a world where sustainability is increasingly important, A.P. Moller-Maersk has set sail with the world’s first methanol fuelled container vessel. Equipped with Alfa Laval’s solutions for methanol as fuel, this vessel shows how innovative solutions and equipment can help shipping companies adapt to the evolving energy landscape and environmental regulations.
Documents
Instructions and manuals
Product brochures
Heating and cooling in an engine room
On a ship, there are many types of machinery with a cooling demand. When the heat energy cannot be recovered or utilized, the total costs of transferring it away from the machinery should be kept to a minimum. Alfa Laval can ensure a cost-effective central cooling system through our portfolio of innovative plate heat exchangers. Our gasketed plate heat exchangers have unique features that reduce the running costs for engine room cooling – and contribute to sustainability.
