Gas heat recovery heat exchangers

The Alfa Laval GHR is a compact gas heat recovery heat exchanger especially designed for exhaust heat recovery from small and medium gas engines, turbines and clean process flue gases up to 600°C. Approximately 25% of the overall industrial waste heat worldwide falls within the range of 200-500°C. By utilizing Alfa Laval GHR, energy efficiency will be enhanced through the recovery and reduction of exhaust heat.

alfa-laval-gas-heat-recovery-heat-exchanger

Features that make recovery different:





  • Lower footprint and weight due to the extended heat transfer area.
  • No external bypass is needed. Robust in terms of many starts/stops due to “Spring Design”.
  • Cleaning is possible during the operation of the gas engine, turbine, or process via an integrated cleaning device.
  • Media output can be adjusted according to the need due to the integrated regulation damper.
  • Low inertia due to low holdup volume of media. Increase uptime and reduce major cleaning intervals via dry-run mode.

Download GHR brochure

.

Why turn to Alfa Laval for exhaust heat recovery?


Energy Saving

Alfa Laval GHR heat exchangers provide the best overall performance in excess flue heat recovery. Approximately 22 to 25% of excess heat from exhaust flue gases from the engines and turbines has been reused. Expect up to 95% improvement in plant efficiency in combined heat and power applications.

It captures exhaust clean process flue gas heat from the various sources of industry and generates hot water, steam or hot oil that can be a free utility for the industry. It also generates electricity via ORC from the excess heat of utility.


Increase Profitability

Alfa Laval GHR heat exchanger recaptures the maximum energy possible and hence reduces fuel consumption, which results in the shortest payback time for investment. Often less than a year depending on project specifications.

Plug & play module will reduce installation time. Due to its compact size, lower footprint, and weight, it requires less space in the plant.

Cleaning of equipment is possible during the operation of engines and turbines. Which reduces downtime.


Emission Reduction

Improving efficiency at existing plants by recovering exhaust heat anywhere in the world is a path of no regret. Making efficiency improvements at existing plants is an effective and economical way of reducing carbon dioxide (CO2) emissions. A more efficient plant uses less fuel, has lower emissions, and experiences lower variable costs. Alfa Laval GHR heat exchangers can improve the efficiency of plants and hence reduce emissions, including CO2, and improve plant performance.

.

Alfa Laval GHR heat exchangers in numbers

  • 1000 units of Alfa Laval GHR heat exchangers are installed across the globe.
  • 2.0 GW of installed excess heat recovery across the globe.
  • 90% plant efficiency possible in combined heat and power applications.
  • 1-year return on investment (ROI) is possible in the best cases.

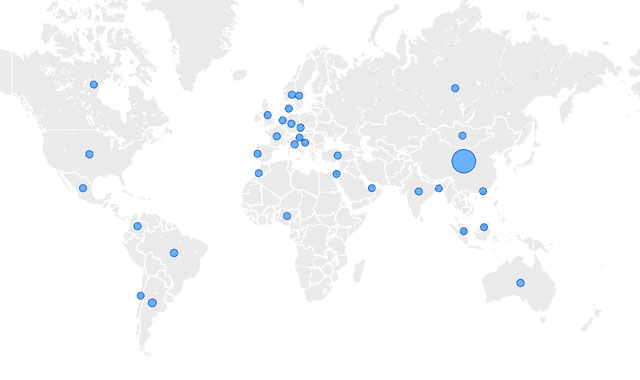

gas heat recovery exchanger world map with references 640x380
.

CHP

Combined heat and power (CHP) is one of the most efficient methods of energy utilization. Over 90% of energy can be channelled back into efficient use. It is a highly cost-effective solution that brings many benefits.

Sustainable solutions Combined heat and power

Organic Rankine Cycle

Renewable energy not only spurs growth, but also bodes well for a more sustainable future. Power generation using geothermal energy or industry waste heat streams can boost plant output, improve your environmental footprint, and increase profitability.

Alfa Laval Sustainable solutions Organic ranking cycle(ORC) pipes

Excess heat recovery

Excess heat recovery is critical to improving energy efficiency. Today, technology makes it possible to capture and reuse the excess heat from existing processes for other purposes, such as heating or generating electricity.

Methanol production 640x360
.

Medienquellen

  • Warmwasser

    Fernwärme, HLK, Prozessanwendungen, ORC (Strom) etc.
  • TEG

    Fernwärme, HLK, Prozessanwendungen, ORC (Strom) etc.
  • Thermoöl

    Heizung
  • Dampf

    Prozessanwendungen, Dampfturbinen (Strom), Betriebsdampf

Technische Daten

  • Leistung: 250 - 5000 kW

Abgasseite:

  • Maximale Eintrittstemperatur: 600 °C (Trockenlauf 530 °C)
  • Minimale Austrittstemperatur: Abhängig von Motorkraftstoff und Abgaszusammensetzung
  • Druckverlust: Nach Kundenanforderung

Media sources

Hot water

  • District heating, HVAC, process applications, ORC (electricity) etc.

TEG

  • District heating, HVAC, process application, ORC (electricity) etc.

Thermal oil

  • Heating

Steam

  • Process applications, steam turbines (electricity), service steam

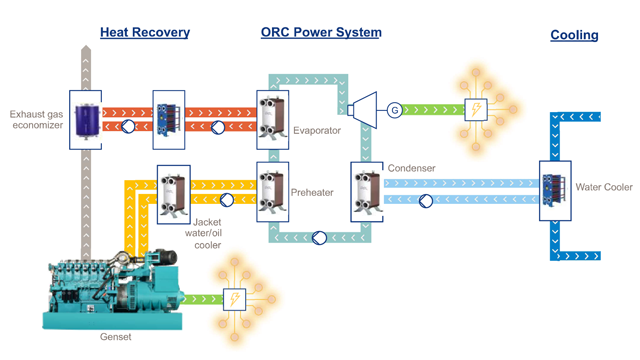

Exhaust Heat Source and ORC

.

Ausgewählte Referenzen

Stromerzeugung in China

70 x Alfa Laval Micro 319 an Gasmotoren für die Erzeugung von Warmwasser.

Power generation in China 2

Prozessabgase in China

3 x Alfa Laval Micro 406 und 2 x Alfa Laval Micro 410 zur Rückgewinnung von Wärme aus dem Aluminiumschmelzofen für die Erzeugung von Warmwasser.

Process flue gas in China Micro 640x360

Industrieller Prozess in Italien

Alfa Laval Micro 814 für die Warmwasseranwendung an einem Gasmotor.

Industrial process in Italy

Hotelgewerbe in Mexiko

Alfa Laval Micro 210 für eine Heißwasseranwendung hinter dem Gasmotor.

Hotel Industry in Mexico

Fernwärme in Dänemark

Alfa Laval Micro 714 für Heißwasseranwendungen an Mehrstoffmotoren.

District heating in Denmark

Wärmerückgewinnung

Mit der richtigen Wärmetauschertechnologie können Sie sowohl Hochtemperaturwärme, die durch industrielle Prozesse erzeugt wird, als auch Wärme mit niedrigeren Temperaturen, die durch Wärmepumpen z.B. zur Kühlung von Rechenzentren oder zur Wasseraufbereitung genutzt wird, zurückgewinnen. Diese Wärme kann dann für Anwendungen genutzt werden, die von Fernwärme bis zur Stromerzeugung reichen.
